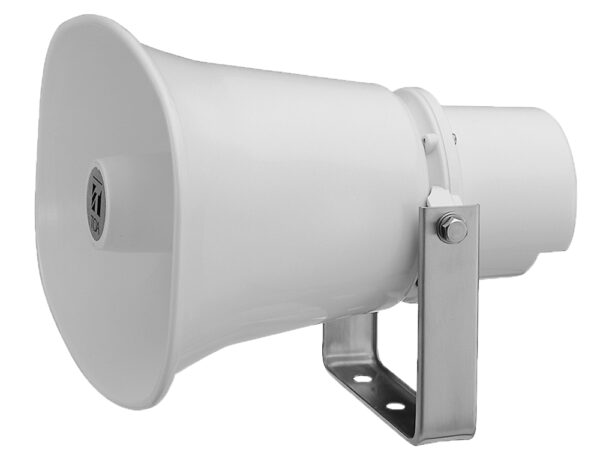

TOA SC-630 Paging Horn Speaker 30W

0 out of 5
( There are no reviews yet. )

৳ 1.00

The SC-630 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.

Categories: , , ,
Add to Wishlist
Add to Wishlist
Added to Wishlist
Added to Wishlist

See your favorite product on Wishlist

View My Wishlist Close

Description

Maximum Power Paging for Extreme Conditions

The TOA SC-630 Paging Horn High-Power Paging Horn Speaker is the ultimate tool for sound projection in the world’s most demanding environments. With a massive 30-watt power handling (15W for mobile use) and a formidable peak sound pressure level of 113 dB, it delivers unparalleled acoustic output. Its optimized frequency response (250 Hz – 10 kHz) ensures powerful, chest-thumping voice commands and alarm signals that dominate the ambient noise of major seaports, open-pit mines, steel mills, and large emergency response vehicles.

Dual-Power, Industrial-Grade Durability

Engineered for both fixed high-power installations and heavy-duty mobile mounting, the SC-630 is built to last. It carries a robust IP65 rating for total dust and water jet protection. The construction features a large, powder-coated aluminum horn, impact-resistant ABS resin, and corrosion-resistant stainless steel hardware, making it capable of withstanding extreme weather, vibration, and corrosive industrial atmospheres.

Complete Technical Specifications

Specification Details
Model TOA SC-630 Paging Horn
Rated Input 30 W (Fixed) / 15 W (Mobile)
Impedance 8 Ω
Sound Pressure Level 113 dB (1W, 1m)
Frequency Response 250 Hz – 10,000 Hz
Protection Rating IP65 (Dust-tight & Water Jet Protected)
Operating Temperature -20°C to +55°C
Construction Aluminum Horn, ABS Body, Stainless Steel Bracket & Hardware
Cable Integrated 600mm PVC Cabtyre Cable
Dimensions & Weight 285 (W) x 227 (H) x 277 (D) mm / 1.7 kg
Optional Mounting YS-151S Swivel Bracket

Primary Applications

  • Heavy Industry & Infrastructure: Major ports, steel plants, power stations, large refineries.

  • Mining & Quarrying: For announcements across vast open-pit operations.

  • Large Emergency & Security Vehicles: Fire trucks, disaster command units, large patrol vehicles.

  • Major Construction Sites & Large Logistics Hubs.

  • Any site where absolute maximum paging power and authority are required.

TOA SC-630 Paging Horn Pricing & Availability in Bangladesh

Price: Contact for Quote (Top-tier, high-power mobile/industrial equipment)
Availability: Supplied through specialized heavy industrial and mobile audio system integrators

For Purchase & Inquiry:
Recommended Supplier Contact:
📞 TOA  Audio  Supplier: +8801601230350
🏢 Technical Technology: +8801601230340 (Uttara, Dhaka)
