Toa SC-610M Paging Horn Speaker 10W

0 out of 5
( There are no reviews yet. )

৳ 1.00

SC-610M

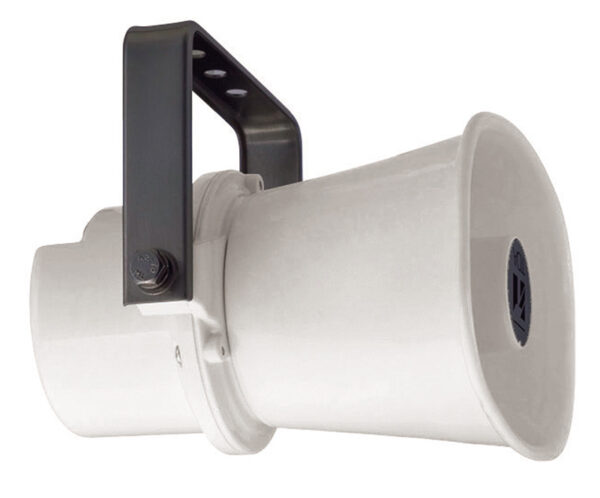

The SC-610M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.

Categories: , , ,
Add to Wishlist
Add to Wishlist
Added to Wishlist
Added to Wishlist

See your favorite product on Wishlist

View My Wishlist Close

Description

High-Efficiency Paging for Professional Line Systems

The Toa SC-610M Paging Horn Speaker 10W is engineered for integration into professional public address systems, Designed specifically for 70V or 100V constant voltage line installations, it allows multiple speakers to be easily connected over long cable runs with minimal power loss, Its core function is to deliver exceptionally loud and intelligible voice paging or alarm tones, with a peak sound pressure level of 110 dB, making it ideal for cutting through high ambient noise in industrial, commercial, and large outdoor areas.

IP65 Protection for Demanding Environments

Built for reliability in challenging settings, the Toa SC-610M Paging Horn carries a robust IP65 protection rating, ensuring it is completely dust-tight and protected against water jets from any direction. This permits installation in dusty factories, humid warehouses, or under outdoor eaves. The unit is constructed with a powder-coated aluminum horn, an ABS resin body, and includes corrosion-resistant stainless steel mounting hardware for long-term durability.

Complete Technical Specifications

Specification Details
Model Toa SC-610M Paging Horn (70V/100V Line Version)
Rated Input / Line Voltage 10 W (for 100V or 70V Constant Voltage Lines)
Sound Pressure Level 110 dB (1W, 1m)
Frequency Response 315 Hz – 12,500 Hz (Optimized for Voice)
Protection Rating IP65 (Dust-tight & Water Jet Protected)
Operating Temperature -20°C to +55°C
Impedance Taps Multi-tap transformer for 100V/70V line power settings (10W, 5W, 3W, 1W, etc.)
Construction Aluminum Horn, ABS Body, Stainless Steel Bracket & Hardware
Cable Integrated 600mm PVC Cabtyre Cable
Dimensions & Weight 172 (W) x 161 (H) x 188 (D) mm / 1.2 kg
Optional Mounting YS-151S Swivel Bracket

Primary Applications

  • Industrial Facilities: For zone paging on factory floors and in warehouses.

  • Commercial Buildings: Parking garages, loading docks, and security gates.

  • Outdoor Areas: Perimeter fences, yards, and covered outdoor workspaces.

  • Any professional PA system requiring reliable, high-output paging on a 70V/100V line.

Pricing & Availability in Bangladesh

Price: Contact for Quote (Professional line-voltage paging equipment)
Availability: Supplied through professional audio and commercial PA system suppliers
