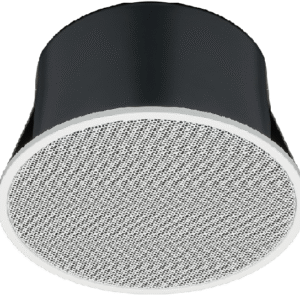

the TOA PC-1860F Fire Dome Speaker in Bangladesh 6W, 95dB sensitivity, certified for Emergency Voice Alarm (EVA) systems building safety compliance.
the TOA PC-1860F Fire Dome Speaker in Bangladesh 6W, 95dB sensitivity, certified for Emergency Voice Alarm (EVA) systems building safety compliance.

TOA PC-1860F Dome Speaker Mount

0 out of 5
( There are no reviews yet. )

৳ 1.00

PC-1860F

PC-1860F features iron-made dome that prevents fire from spreading in the ceiling in event of an emergency situation. Speaker’s thin panel design harmonizes with the venue’s architecture and decor, blending it neatly into the environment. Ideal for the use in announcement and music.

Categories: , , ,
Add to Wishlist
Add to Wishlist
Added to Wishlist
Added to Wishlist

See your favorite product on Wishlist

View My Wishlist Close

Description

Wide-Coverage Surface Public Address

The TOA PC-1860F Dome Speaker Mount is a surface-mount designed for clear, wide-dispersion audio in general public address and background music applications. Its distinctive dome-shaped enclosure is engineered to broadcast sound evenly across large, open areas, making it an effective and visually noticeable solution for atriums, shopping malls, transportation hubs, warehouses, and sports facilities where broad, uniform sound coverage is required.

Dome Design for Even Sound Distribution

The key feature of this TOA PC-1860F Dome Speaker is its  shaped acoustic design, which minimizes directional beaming and provides consistent sound pressure levels across a wide area. With a typical 6W power handling on 70V/100V line systems, it delivers sufficient volume for public announcements and music. The IP42 rating offers basic protection against dust and dripping water, suitable for most indoor environments. Its surface-mount design simplifies installation where recessed mounting is not feasible.

Technical Specifications

Specification Details
Model  PC 1860F
Application Fire-Rated Emergency Voice Alarm (EVA) & PA
Rated Input 6 W (100V line), 3 W (70V line)
Sensitivity 95 dB (1W, 1m)
Frequency Response 170 Hz – 20,000 Hz
Speaker 12 cm (5″) cone-type
Fire Protection Integrated Fire Dome (Steel plate)
Mounting Recessed, Spring Catch (for φ156 mm hole)
Connection Push-wire terminal (2-branch type)
Finish White (RAL 9016), Black Fire Dome
Dimensions & Weight φ180 × (5+100) mm / 1 kg

Primary Applications

  • Shopping Mall Atriums & Food Courts

  • Airport & Bus Terminal Concourses

  • Sports Arenas & Gymnasiums

  • Warehouses & Industrial Halls

  • Large Retail Stores & Exhibition Centers

Pricing & Availability in Bangladesh

Price: Contact for Quote (Commercial PA equipment)
Availability: Available through professional audio and PA system suppliers

For Purchase & Inquiry:
Recommended Supplier Contact:
📞 TOA Pro Audio Supplier: +8801601230350
🏢 Technical Technology: +8801601230340 (Uttara, Dhaka)
