Toa CS-304 30W Horn Speaker
৳ 1.00
CS-304

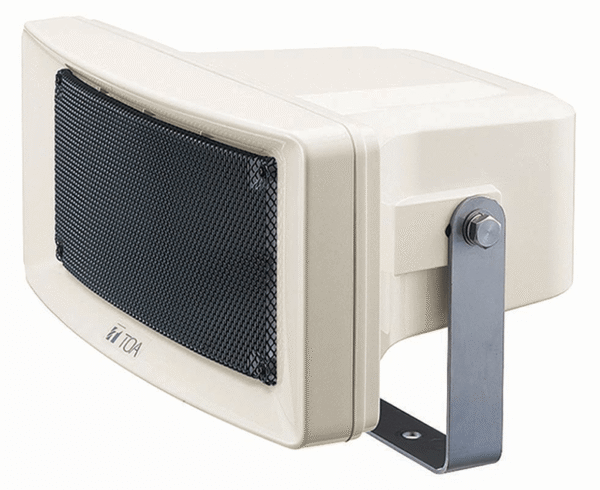

The CS-304 outdoor speaker features stainless steel hardware for all-weather durability.
It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers.
The CS-304 employs the rotary switch that facilitates impedance changes.
It also employs a constant directivity horn for clear sound output over its horizontal range of 90゜operation.
- Description
- Reviews (0)
Description
High-Power 30W Output with 90° Predictable Coverage
The Toa CS-304 30W Horn Speaker is a high-output outdoor horn speaker designed for large-area public address where both power and controlled sound dispersion are critical. With a substantial 30-watt power handling on 70V/100V line systems and an exceptionally high 98 dB sensitivity, it delivers loud, far-reaching sound with excellent amplifier efficiency. Its defining feature is the constant directivity horn, which provides a consistent 90° horizontal coverage pattern (±45°), ensuring uniform sound projection and clear intelligibility across wide, fan-shaped areas.
Professional IP65 Protection & Durable Build
Engineered for permanent, hassle-free outdoor installation, the Toa CS-304 30W Horn Speaker boasts a robust IP65 rating, certifying it as completely dust-tight and protected against low-pressure water jets from any direction. This guarantees reliable performance through heavy rain, dust, and humidity. The enclosure is constructed from UV-resistant ABS resin, and all critical hardware—including the bracket and screws—are made from corrosion-resistant stainless steel, ensuring longevity in Bangladesh’s demanding climate.
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | Toa CS-304 30W Horn Speaker |
| Rated Input | 30 W (70V / 100V Line) |
| Sensitivity | 98 dB (1W, 1m) |
| Frequency Response | 120 Hz – 15,000 Hz |
| Directivity | Constant 90° Horn (±45° Horizontal) |
| Speaker | 12 cm Cone-type |
| Protection Rating | IP65 (Dust-tight & Water Jet Protected) |
| Operating Temperature | -20°C to +55°C |
| Construction | ABS Resin Horn, Stainless Steel Bracket & Screws, Aluminum Net |
| Dimensions & Weight | 366 (W) x 230 (H) x 272 (D) mm / 3.1 kg |
| Cable | Integrated 2-core cabtyre cord (6 mm) |
Primary Applications
-
Sports Stadiums & Large Grandstands: For clear announcements to broad seating sections.
-
Public Parks & Amphitheaters: To cover wide, open gathering spaces evenly.
-
Industrial Plants & Shipping Yards: For safety announcements across large work areas.
-
University Fields & Campus Commons: Directional sound for outdoor events and alerts.
-
Transportation Hubs: Covering large open areas in bus or train terminals.
Toa CS-304 30W Horn Speaker Pricing & Availability in Bangladesh
Price: Contact for Quote (High-power professional outdoor speaker)
Availability: Supplied through professional audio and large-scale PA system integrators
For Purchase & Inquiry:
Recommended Supplier Contact:
📞 TOA Pro Audio Supplier: +8801601230350
🏢 Technical Technology: +8801601230340 (Uttara, Dhaka)
