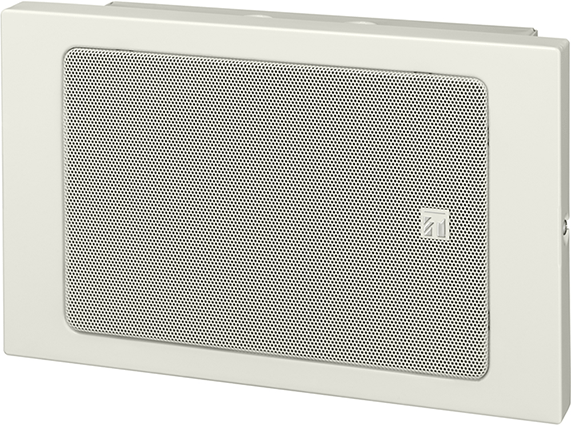

TOA BS-680FC Speaker Wall Mount 6W

0 out of 5
( There are no reviews yet. )

৳ 1.00

Key Features & Benefits

✅ EN 54-24 Certified: Compliant for use in critical Emergency Voice Alarm (EVA) systems.
✅ Wide Sound Dispersion: Ensures clear, intelligible audio coverage across large, open areas.
✅ Robust Steel Construction: Provides superior durability for demanding environments.
✅ 70V/100V Line Ready: Enables straightforward installation in commercial audio systems.
✅ High-Intelligibility Driver: 6-inch dual-cone designed for optimal speech clarity.
✅ Secure Screw Terminals: Reliable connections for permanent, safety-critical installations.

Categories: , , ,
Add to Wishlist
Add to Wishlist
Added to Wishlist
Added to Wishlist

See your favorite product on Wishlist

View My Wishlist Close

Description

TOA BS-680FC Speaker Wall Mount Price in Bangladesh

The TOA BS-680FC is a professional-grade, steel-enclosure wall mount speaker specifically designed and certified to EN 54-24 standards, This certification makes it a critical component for Emergency Voice Alarm (EVA) and Public Address (PA) systems where clear, reliable audio for life safety announcements is required by building regulations, It operates on standard 70V and 100V constant voltage lines, ensuring seamless integration into professional sound systems.

Engineered for Wide, Intelligible Sound Coverage

Engineered for maximum intelligibility, this speaker features a 6-inch dual-cone driver and a specifically designed baffle to provide a wide, uniform sound dispersion pattern (up to 180° at lower frequencies), This ensures that evacuation instructions and announcements are heard clearly across open spaces, Its robust, all-steel construction with an off-white (RAL 9010) finish is built for durability in commercial and institutional environments where reliability is paramount.

 Technical Specifications

Specification Details
Model TOA BS-680FC Wall Mount Speaker
Certification EN 54-24 Certified for Voice Alarm Systems
System 70V & 100V Constant Voltage Lines
Rated Noise Power 6 W (100V), 3 W (70V)
Impedance Taps 100V: 1.7kΩ(6W), 3.3kΩ(3W), 6.7kΩ(1.5W), 13kΩ(0.8W)
70V: 1.7kΩ(3W), 3.3kΩ(1.5W), 6.7kΩ(0.8W), 13kΩ(0.4W)
Max SPL (EN 54-24) 84 dB (6W, 4m) / 96 dB (6W, 1m)
Coverage Angle (-6dB) Up to 180° horizontal & vertical
Driver 16 cm (6″) Double Cone
Enclosure Material Painted Steel Plate
Connection Screw Connector (Steatite Terminal)
Dimensions 310 (W) × 190 (H) × 90 (D) mm
Weight 2.6 kg
Mounting Wall Mount

Primary Applications

  • Emergency Voice Alarm Systems: Mandatory for evacuation and life safety announcements in public buildings.

  • Shopping Malls & Airports: For public address and critical safety messaging in large spaces.

  • Hospitals & Healthcare Facilities: For urgent announcements and code alerts.

  • Office Towers & Hotels: For general PA and regulated emergency communication systems.

  • Educational Campuses: For mass notification and daily bell/announcement systems.

Pricing & Availability in Bangladesh

Price: Contact for Quote (Certified Professional Speaker)
Availability: Supplied through authorized TOA professional and life-safety system integrators.

For Purchase & Inquiry:
Recommended Supplier Contact:
📞 Technical Technology: +8801601230340 (Uttara, Dhaka)
📞 TOA Product Line: +8801601230350
