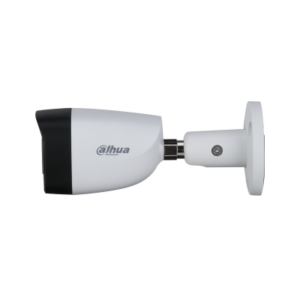

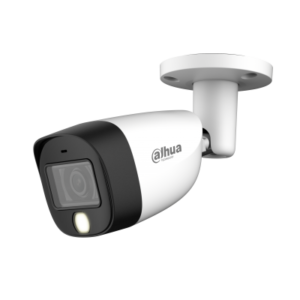

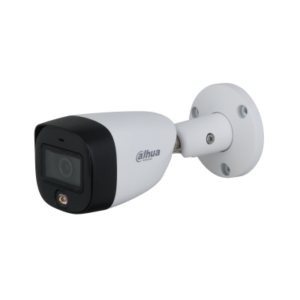

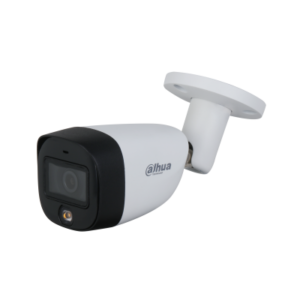

Dahua-HAC-HFW1801CM-IL-A 4K-Smart Dual Light HDCVI Fixed-focal Bullet Camera

0 out of 5
( There are no reviews yet. )

Call for Price

4K Smart Dual Light HDCVI Fixed-focal Bullet Camera

* The parameters and datasheets below can only be applied to 1801-IL series.

* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.

  • Max. 15 fps@4K
  • 120 dB true WDR, 3D NR
  • Smart Dual Light
  • 20 m illumination distance
  • Super Adapt
  • Built-in MIC
  • 3.6 mm fixed lens (2.8 mm optional)
  • CVI/CVBS/AHD/TVI switchable
  • IP67, 12 VDC

Categories: , ,

Description

System Overview  Dahua-HAC-HFW1801CM-IL-A 4K-Smart

The Lite Series is a great choice for consumers looking Dahua-HAC-HFW1801CM-IL-A 4K-Smart for high quality
monitoring products at a reasonable price. Its low cost and high
performance make it ideal for residential areas and SMB solutions. This
series is equipped with a wide range of technologies, such as full-color
and starlight, providing various solutions for different scenarios.
Functions
Wide Dynamic Range
With its advanced Wide Dynamic Range technology (WDR), the camera
captures highly detailed images and produces high-definition recordings
in high-contrast lighting conditions, and in scenes with backlighting or
shadows.
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI
camera. It adopts a unique audio processing and transmission
technology that restores source audio and eliminates noise, ensuring
the quality and reliability of the audio information that is collected. This
becomes important for video surveillance applications that use audio
information as a type of supplementary evidence.
Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on
the white light when Perimeter Protection/SMD Plus function of AI XVR
detects a target in the rule area to capture clear, vivid images. When the
target leaves the rule area, the camera automatically switches over from
the white light to the IR light to significantly reduce light pollution.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its
parameters to provide optimal performance and vivid images.

4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power)
which are simultaneously transmitted over a coaxial cable. Dual-way
data transmission allows the HDCVI camera to interact with the XVR to
perform various actions such as sending control signals and triggering
alarms. HDCVI technology also supports PoC, which makes the camera
easy and quick to bd DHAKA  install.

Specification

Camera HAC-HFW1801CM-IL-A

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 20 m (65.62 ft)

Warm light: 20 m (65.62 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (Warm light); 1 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 88°; V: 46°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.3 m (4.27 ft)
3.6 mm: 1.9 m (6.23 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

88 m

(288.71 ft)

35.2 m (115.49 ft)

17.6 m

(57.74 ft)

8.8 m

(28.87 ft)

3.6 mm

106.7 m (350.07 ft)

42.7 m (140.09 ft)

21.3 m

(69.88 ft)

10.7 m

(35.10 ft)

Video

Video Frame Rate

CVI:
PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4K@15 fps
NTSC: 4K@15 fps
TVI:
PAL: 4K@15 fps
NTSC: 4K@15 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto; Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Defog

Electronic defog

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 4.2 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Low

Structure

Casing Material

Metal

Product Dimensions

166.6 mm × 69.7 mm × 70.0 mm (6.56″ × 2.75″ × 2.75″)

Net Weight

0.33 kg (0.73 lb)

Gross Weight

0.43 kg (0.95 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
